EZNEC Analysis of 30 Foot Vertical

The 30 foot vertical was modeled using EZNEC PRO 7.0. The included "Vertical Over Real Ground" was used as a starting point. The following changes were made:

• Dimensions set to feet
• Wire 1 end 2 Z was set to 30 (feet)
• Wire 1 diameter was set to 2.25 inches
• Ground conductivity set to .015 S/m based on FCC Figure M3 showing ground conductivity of 15 mS/m for Tucson AZ.

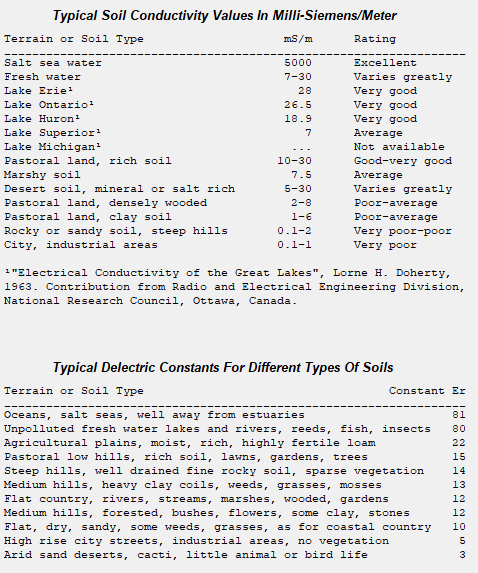

• Ground dielectric constant set to 12 based on Conductivity and Dielectric Constant, Various Locales

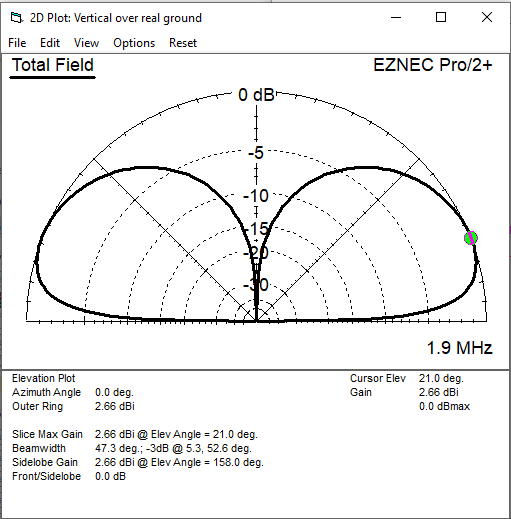

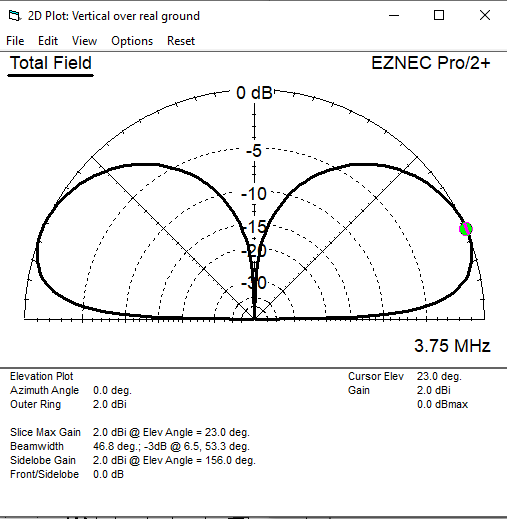

160 Meters F = 1.900 MHz Z = 1.483 - J 805.4 ohms
80 Meters F = 3.750 MHz Z = 6.143 - J 341.7 ohms
60 Meters F = 5.3685 MHz Z = 13.78 - J 169.3 ohms

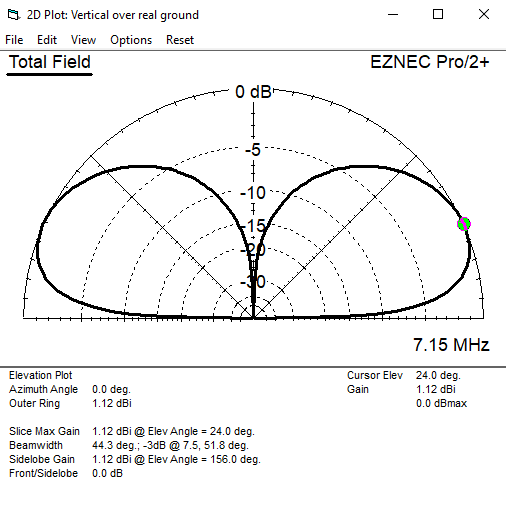

40 Meters F = 7.150 MHz Z = 28.29 - J 40.91 ohms

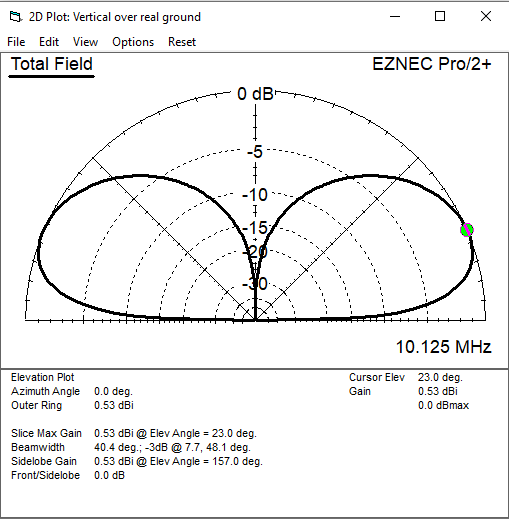

30 Meters F = 10.125 MHz Z = 83.93 + J 143.1 ohms

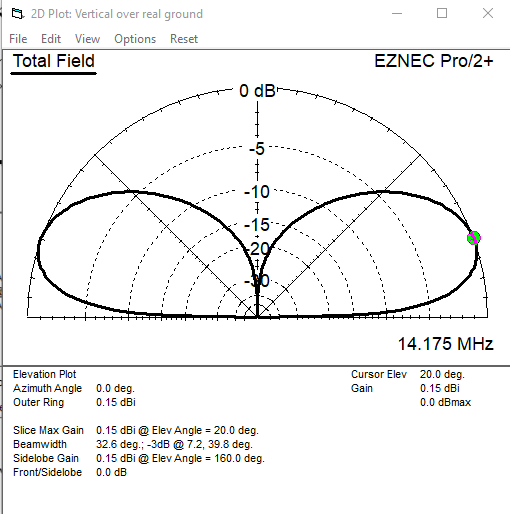

20 Meters F = 14.175 MHz Z = 492.2 + J 409.8 ohms

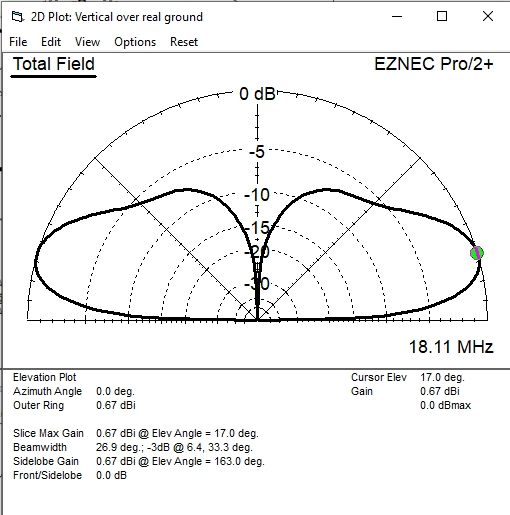

17 Meters F = 18.110 MHz Z = 217.4 - J 403 ohms

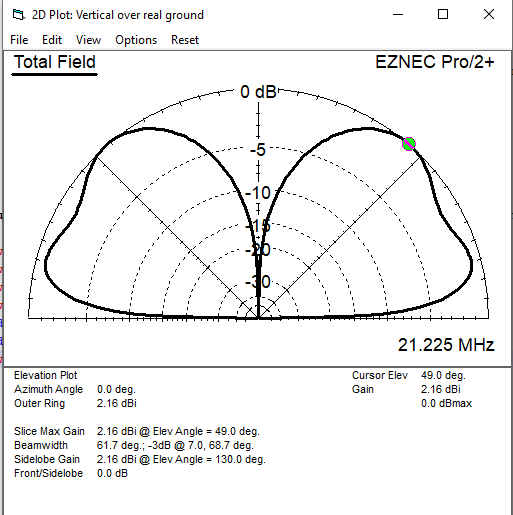

15 Meters F = 21.225 MHz Z = 53.61 - J 153.3 ohms

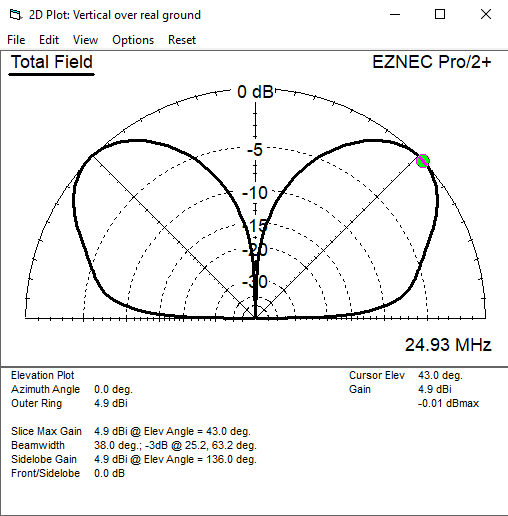

12 Meters F = 24.930 MHz Z = 66.46 + J 45.17 ohms

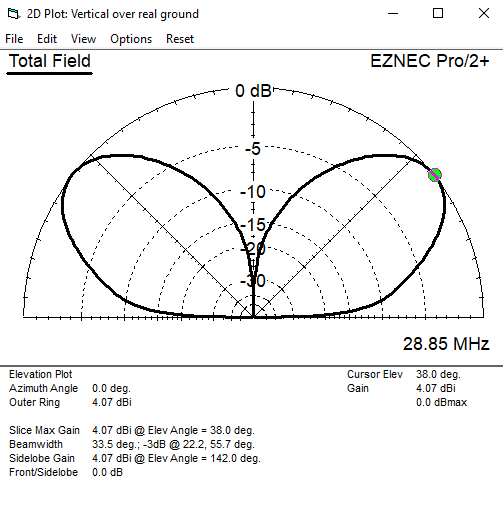

10 Meters F = 28.850 MHz Z = 261.4 + J 217.4 ohms
